Models: #P-2, #P-3

Loading and Unloading with Ease

HD steel shafts with rotating “Tines” located above the side discharge belt fluff up the mulch and other bulk commodities so they flow smoothly out the side discharge belt. Approximately 20% more coverage with fluffed mulch is possible.

A variable speed 22” wide side discharge ribbed belt

Easily deliver product to wheelbarrows or top dressers with little or no mess. No back braking shovel or pitchfork manual labor. Two men can do the work of 5. Saves cost and your body.

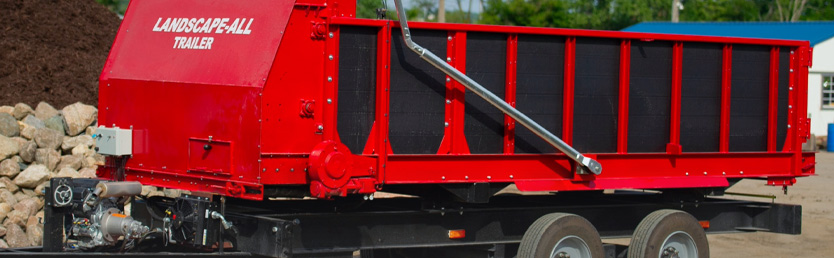

Commodity Trailer Model #P-2

Subframe & Suspension

• 8” structural C channels 15.3 PPF
• Crossmembers: structural steel angles & tubes
• Suspension: LeafSprings
• Axles: Two Dexter 10,000 lbs. each
• Brakes: Electric drum
• Tongue: 7' steel C Channel with Pintle eye hitch
• Wheels & Tires: (2) HD 17.5” steel wheels with 235/75R X 17.5 load range H tires

Body

• Steel & Composite construction
• Length: Body 18’ + 7’ tongue (25’OA length)
• Width: 6’
• Side wall height: 36”
• Side posts: ¼” fabricated steel
• Side panels: Non-corrosive smooth composite ¾” x 6” tongue and groove planks or 16 ga. steel
• OA height: 115” Top Rail Height 86”
• Live floor: Composite HD material for long life. (Reversable)
• Chain & sprocket drive: Dual “Pintle” heavy duty chain
• Rear discharge: Full width swing out gate
• Side discharge: 22” ribbed belt
• 2 steel shafts with heavy duty tines or distributors to break up material for smooth unloading
• Lighting: Standard

Ratings

• Empty weight 9,060 lbs. Note: estimated + or – 3%
• Payload: 10,940 lbs.

Self-Contained Power Unity

• 23 HP gas engine w/10 gallon fuel tank
• w/20 GPM flow rate at 3,000 PSI
• Std. Remote and manual controls “Reversable floor direction”

Options

• Manual roll tarp
• Electric Apache front to back tarp
• Top rail composite protectors
• Cameras
• Straight truck chassis mounted unit

Warranty

One year “Limited” warranty against manufacturing defects, or workmanship. Power unit subject to vendors warranty policy.

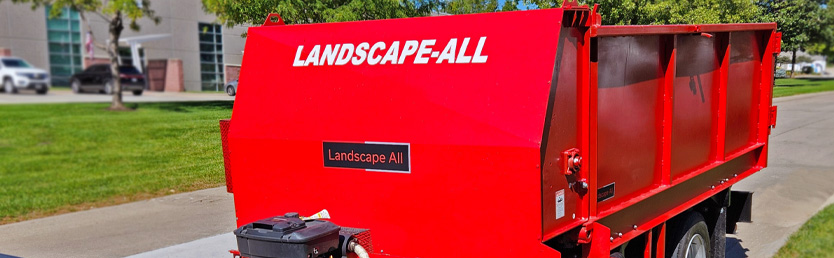

Commodity Trailer Model #P-3

Subframe & Suspension

• 10” structural C channels 15.3 PPF
• Crossmembers: structural steel angles & tubes
• Suspension: Torsion Springs
• Axles: One 10,000 lbs.
• Brakes: Electric drum
• Tongue: 10” steel C Channel with 2” Pintle eye, or 2 5/16” ball hitch
• Wheels & Tires: (2) HD 17.5” steel wheels with 235/75R X 17.5 load range J18 tires rated at 6,000 Lbs. (each tire)
• Screw type landing gear leg

Body

• Steel & Composite construction
• Length: Body 12’ + 7’ tongue (19’ OA length)
• Width: 6’ 6”
• Side wall height: 37”
• Side posts: ¼” fabricated steel 45” C/L
• Side walls: smooth 16 gauge. Steel construction
• OA height 84” Top Rail Height 80”
• Live floor: Variable speed HD composite ¾” x 6” slats for extended life (Reversable) Tongue and groove design to keep out moisture.
• Chain & sprocket drive: “Dual “Pintle” heavy duty chain W/HD planetary hydraulic drive
• Rear discharge: Full width swing out gate with safety switch
• Side discharge: Ribbed 22” belt with variable unloading speed
• Steel shaft with heavy duty tines, or distributors to break (Fluff) up material for smooth product unloading
• Lighting: DOT Standard
• Access steps mounted curbside & roadside

Ratings

• Empty weight 5,270 lbs. Note: estimated + or – 3%
• Payload: 6,000 lbs.
• 216 CF level with top rail

Self-Contained Power Unity

• 627 cc 4 Stroke 23 HP gas engine.
• 18 GPM flow rate at 2,000 PSI.
• Integral 35-gallon hydraulic oil reservoir mounted in rear subframe
• Std. manual control bank mounted on frame “Reversible floor direction”
• Std. RF remote control included
• Variable floor speed controls

Options

• Mesh front to back manual tarp:
• Top rail composite protector strips
• Cameras
• Straight truck chassis mounted unit
• 18’ Tandem axle model P-2

Warranty

One year “Limited” warranty against manufacturing defects, or workmanship. Power unit subject to vendors warranty policy.
